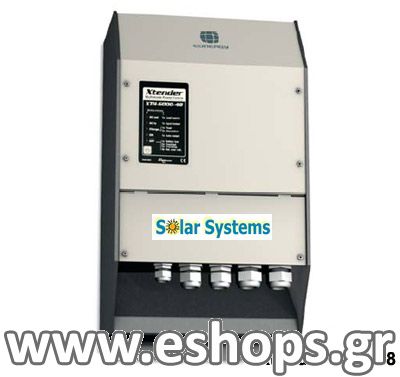

Xtender 6000-48

5000VA  48V / με ενσωματομένο φορτιστή μπαταριών  0-100A

Τιμή χωρίς ΦΠΑ

The Conergy Xtender offers in a single device all the functions
of a pure sine wave inverter, a highly efficient battery
charger, a powerful transfer system and intelligent boosting
of external power sources. Its outstanding capabilities set
new benchmarks and provide unmatched freedom of use.
The Conergy Xtender is the perfect solution for complex
hybrid off-grid systems. It is able to accommodate all types
of energy sources, such as photovoltaic modules, small wind
turbines, diesel gensets or the public power grid, regardless of
whether it works as a single- or three-phase generator.
The Conergy Xtender offers maximum flexibility with regard to
the AC output, as output powers from 2.5 kVA to 21 kVA (singlephase)
and from 7.5 kVA to 63 kVA (three-phase) can be achieved
with only one product type. This simplifies the planning and
system design of off-grid systems significantly and allows the
system to be ideally adapted to specific energy requirements

Model Conergy Conergy Conergy Conergy

Xtender 3000-12 Xtender 5000-24 Xtender 6000-48 Xtender 8000-48











Inverter

Rated battery voltage 12 V 24 V 48 V 48 V

Input voltage range 9.5–17 V 19–34 V 38–68 V 38–68 V

Continuous power @ 25 °C 2,500 VA 4,500 VA 5,000 VA 7,000 VA

Smart boost power 3,000 VA 5,000 VA 6,000 VA 8,000 VA

30 minute load @ 25 °C 3,000 VA 5,000 VA 6,000 VA 8,000 VA

5 second load @ 25 °C 3 × Pcont

Maximum load Up to short-circuit

Maximum asymmetrical load Up to Pnom

Load detection (standby) 2 to 25 W

Admissible cos phi 0.1–1

Maximum efficiency 93 % 94 % 96 % 96 %

Open-circuit power OFF/standby/ON 1.7 W /2.2 W / 14 W 1.8 W / 2.5 W / 20 W 2.2W / 3 W / 22 W 2.2 W / 3.8 W / 34 W

Output voltage Sine wave 230 VAC (+ 0/-10 %) adjustable to 190–245 VAC

Output frequency 50 Hz adjustable 45–65 Hz ± 0.05 % (quartz-controlled)

Harmonic distortion < 2 %

Overcharge and short-circuit Automatic disconnection then 3 startup attempts

Overheating protection Alarm prior to disconnection and automatic restart

Battery charger

6-phase battery charger Programmable I-U-Uo-equalisation-Uo(low)-U(periodic)

Adjustable charge current 0–160 A 0–140 A 0–100 A 0–120 A

Input current sharing system 1–50 A

Maximum input voltage 265 VAC

AC input voltage range Level of detection adjustable from 150 to 230 VAC

Admissible input frequency 45–65 Hz

Battery control (factory value / adjustable range with RCC-02)

Absorption voltage 14.4 V / 9.5–18 V 28.8 V / 19–36 V 57.6 V / 38–72 V 57.6 V / 38–72 V

Floating voltage 13.6 V / 9.5–18 V 27.2 V / 19–36 V 54.4 V / 38–72 V 54.4 V / 38–72 V

Equalisation voltage – / 9.5–18 V – / 19–36 V – / 38–72 V – / 38–72 V

Low voltage disconnection 10.8 V / 9.5–18 V 21.6 V / 19–36 V 43.2 V / 38–72 V 43.2V / 38–72 V

Temperature compensation –5 / 0 to –8 mV / °C/cell (optional BTC-01)

General data

Auxiliary contacts 2 independent contacts 16 A – 250 VAC (potential-free 3 points)

Maximum transfer relay current 50 A

Maximum transfer time 15 ms

Weight 34 kg 40 kg 42 kg 46 kg

Dimensions: H × W × D mm 220 × 290 × 500 220 × 290 × 500 220 × 290 × 500 220 × 310 × 500

Protection type IP23

Conformity EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89 / 336/EEC, LVD 73 / 23/EEC

Operating temperature range –20 to +55 °C

Ventilation Forced from 55 °C

Noise level < 10 dB / < 35 dB (without / with ventilation)

Warranty 2 years
