Type:

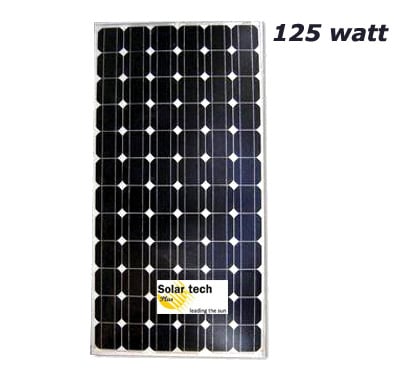

SE-16 125M

Maximum Power(W)

125

Optimum Power Voltage(Vmp)

17.6

Optimum Operatige Current(Imp)

7.20

Open Circuit Voltage(Voc)

22.4

Short Circuit Current(Isc)

7.33

Size of Module(mm)

1580*801*35

Caple & Connector Type

Pass the TUV Certificate

Frame(Material Corners,etc.)

Aluminium-alloy

Backing (Brand Type)

TPT

Cell Efficiency for 180W(%)

16.25

Weight Per Piece(KG)

12.5

FF (%)

70-76%

Junction Box Type

Pass the TUV Certificate

Tolerance Wattage(e.g.+/-5%)

±5%

Front Glass Thikness(mm)

3.2

Temperature Coefficients of Isc(%)

0.04

Temperature Coefficients of Voc(%)

-0.38

Temperature Coefficients of Pm(%)

-0.47

Temperature Coefficients of Im(%)

0.04

Temperature Coefficients of Vm(%)

-0.38

Temperature Range

 -40°C to +85°C

Surface Maximum Load Capacity

2400Pa

Allowable Hail Load

23m/s ,7.53g

Bypass Diode Rating(A)

12

Warranty

90% of 10 years,80% of 25 years.

Standard Test Conditions

AM1.5   1000W/ M2  25 +/-2°C
